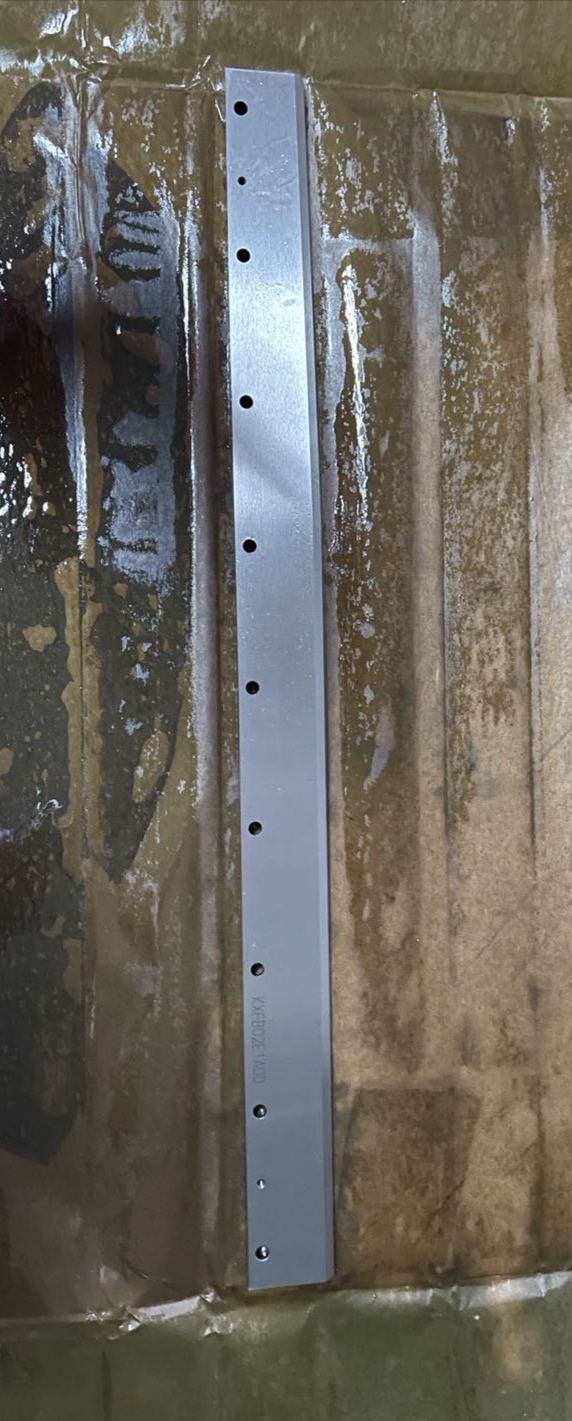

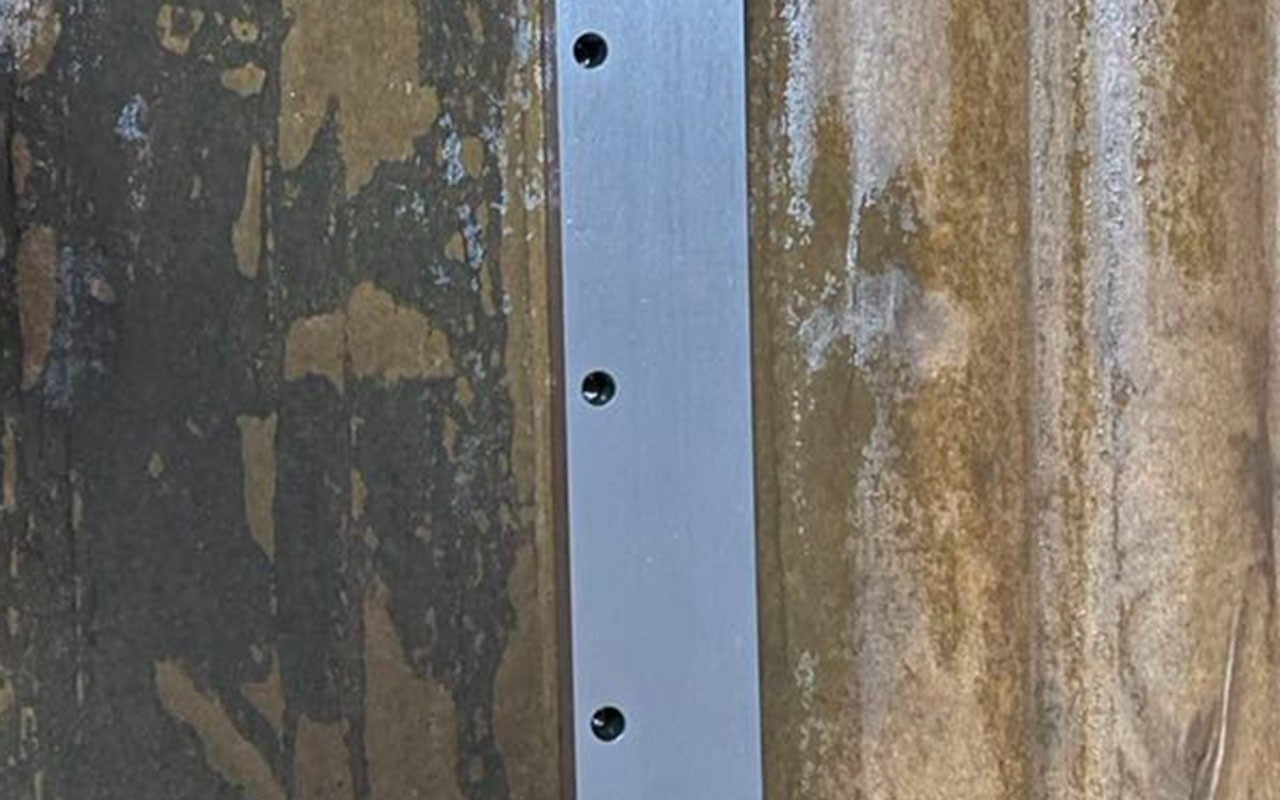

KXFB02E0A01.KXFB02E1A00

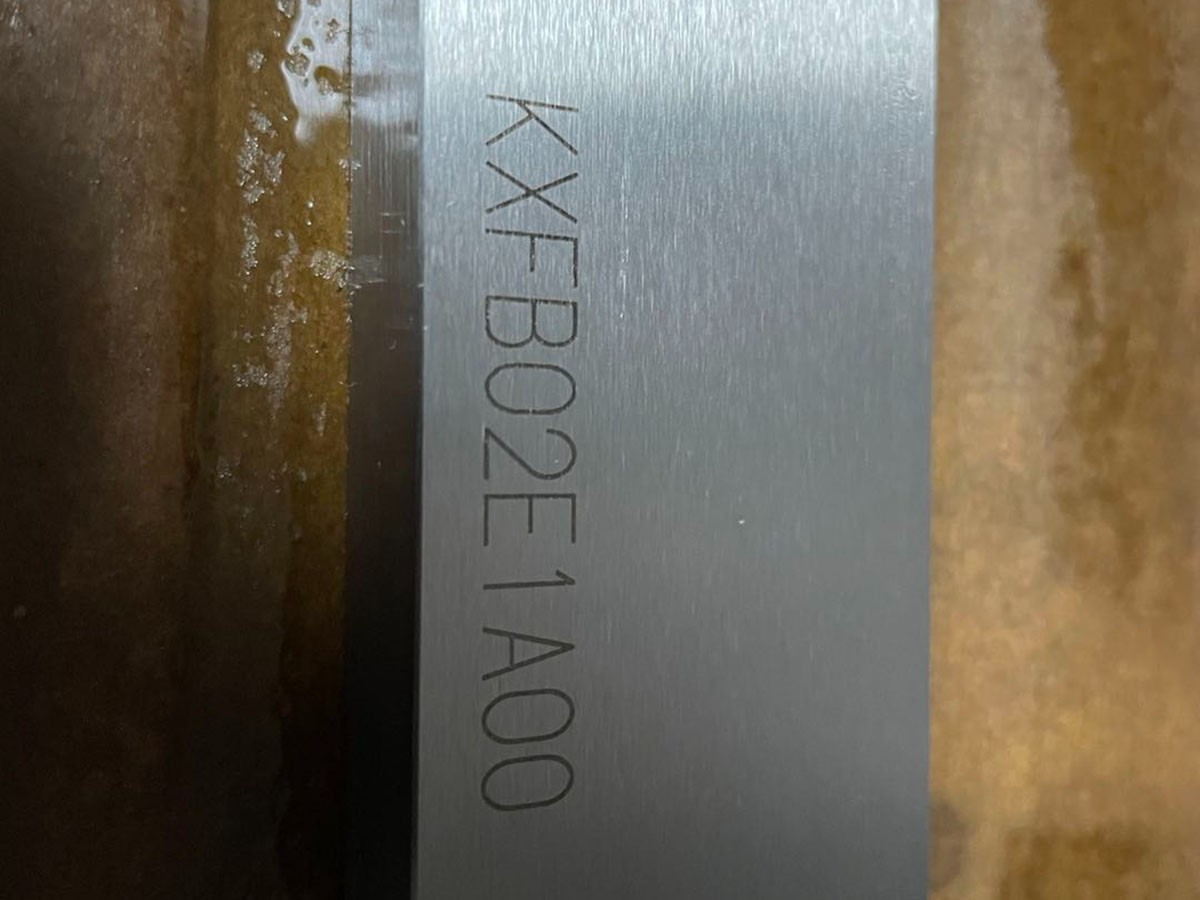

KXFB02E1A00

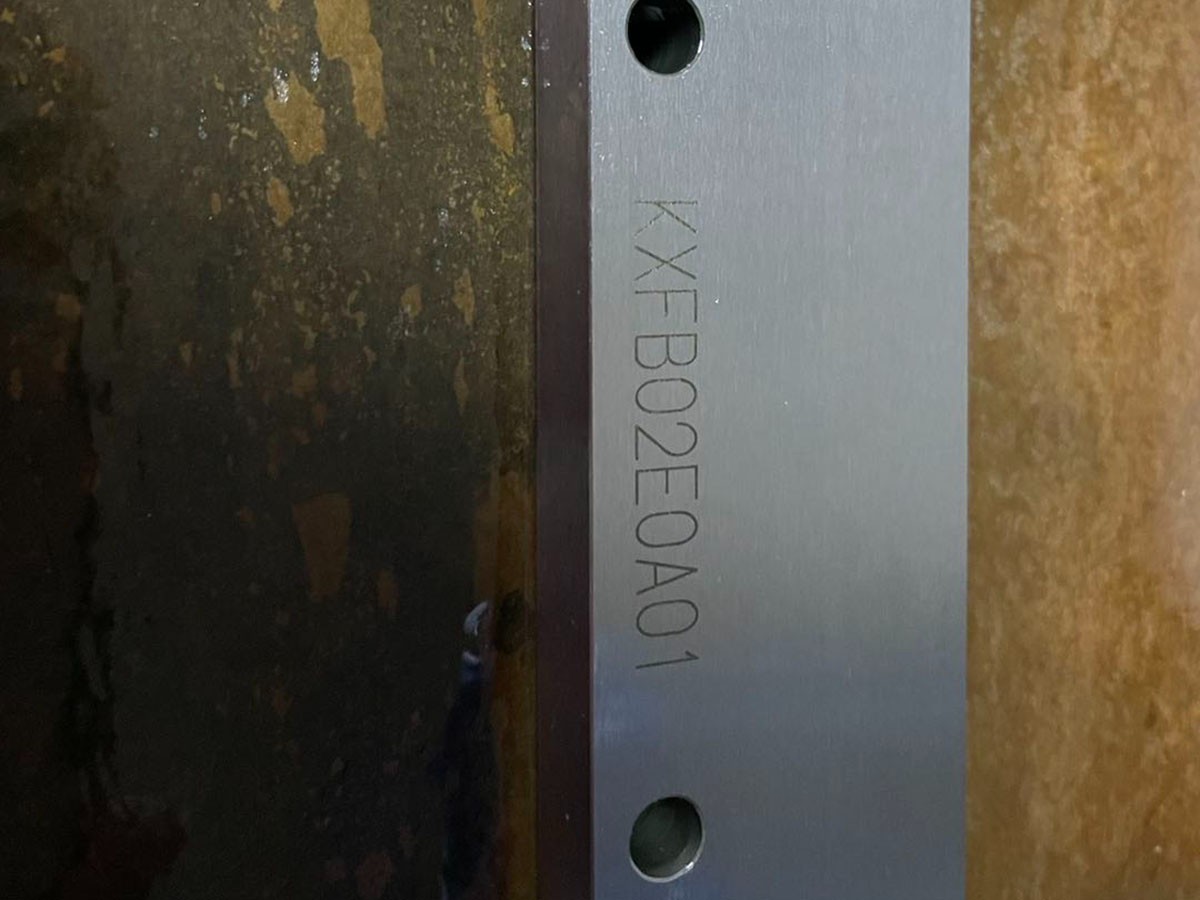

KXFB02E0A01

Description

1 N610067516AB CPU BOX PBXCAB-AA 1 S

2 N210084432AA FILTER 1
3 N210110264AA SPRING 1
4 N510037010AA POWER PCSF-200P-X2S3 1 S
5 N510037011AA PCB-COM NBC-7153-01 1
6 KXF08K7AA00 FAN-GUARD 109-049E 1
7 N610078579AA FAN 1
8 N610154417AA NC and I/O Control Board(Pana) PNFCAC-CA 1 S
9 N610145898AA Camera I/F Board PPRCAH-CA 1 S

10 N610120633AA PCB-COM(kernel pre-installed):TYPE-2

1 N210172676AB BRACKET 1
2 N210172677AC BRACKET 1
3 N210172678AB BRACKET 1
4 N210172679AA BRACKET 1
5 N610120948AA Interlock I/O Board (NPM-W) PNF0B4-AA 1 S
6 KXFP5X2AA00 TERMINAL-BLOCK BTBH30C6 1 S
7 N210SDQ1-376 MAGNET-CONTACTOR SD-Q11 DC24V1b 3 S
8 N510063806AA CIRCUIT-PROTECTOR NC1V-1100-10AS 3 S
9 N510025698AA RELAY G9SC-400-CNP4E 1 S
10 N510025759AB RELAY G9SC-PF 1 S
11 N510013513AA TERMINAL N510013513AA 1 S
12 N510063724AA POWER-SUPPLY HWS600-24 1 S
13 KXFP5XAAA00 TERMINAL-BLOCK BTBH30C8 1 S
14 N322BNJ56B TERMINAL BNJ56B 2
15 N510048517AA CABLE-SUPPORT FT4 42
16 XYN4+J8FN SCREW Cross recessed Pan head machine screw with SW & Small round-plain was 5
17 N510063925AA CIRCUIT-PROTECTOR NC1V-1100-15AS 1 S
18 N510017341AA BOLT Hexagon socket head cap screw M3X8-10.9 A2J (Trivalent) 4
19 N510017344AA BOLT Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent) 8
20 N510017351AA BOLT Hexagon socket head cap screw M4X16-10.9 A2J (Trivalent) 4
21 N510018479AA WASHER Small round-plain washer 4 10H A2J (Trivalent) 14
22 N510018494AA WASHER Round finish plain washer 3 10H A2J (Trivalent) 4
23 N510018497AA WASHER Round finish plain washer 4 10H A2J (Trivalent) 22
24 N510020100AA WASHER Thick washer M5 14
25 N510017337AA BOLT Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent) 20
26 N510017381AA BOLT Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent) 18
27 N510017346AA BOLT Hexagon socket head cap screw M4X12-10.9 A2J (Trivalent) 6
28 N510017386AA BOLT Hexagon socket head cap screw M5X10-10.9 A2J (Trivalent) 8
29 N510017390AA BOLT Hexagon socket head cap screw M5X12-10.9 A2J (Trivalent) 6
30 N210182141AA BRACKET 1
31 N210182142AA BRACKET 1
32 N210182143AA BRACKET 1
33 N510066652AA FAN 600-FAN-01
